High Strength High Property AZ31 Magnesium Alloy Sheet Mg Plate
Those applications requiring a flat surface or high dimensional stability benefit from the use of magnesium tooling plate. Typical uses included jigs, fixtures, optical benches, vibration test equipment and inspection gauges. Magnesium Tooling Plate is non-magnetic and has high electrical and thermal conductivity filling many material requirements in the electronics and computer industries.
Applications:
Due to its good specifications , AZ31B magnesium alloy can be used in all kinds of field.
1. Magnesium alloy thick plate are used to make satellites , lunar landing aircraft bases , exterior panel of missile and rocket and the empennage of missile and plane.
2. Magnesium alloy middle board are used to make the auxiliary tank ,side board and other structure of battleplane.
3. Cast sheet of magnesium alloy:
- The magnesium alloy are used on the train for vibration attenuation,seat and couchette framework lining board and goods shelf.
- The wide width usually requests between 1200-1800mm,and thickness between 1 and 1.5mm on cars’ front and rear panels ,door panels .
- The shell of 3C product , computer ,mobile hard disk ,CD, camea,acoustics,cell phone.
- Magnesium etching has replaced copper plate in printing and printing plate industry, and average thickness of the plate is 5mm.
- Magnesium has been continuously used in electric tool and sport equipment.
Specifications:
| Length*Width(mm) | Thickness(mm) |
| 1000*580 | 0.3 | 0.5 | 0.7 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
| 914*610 | 0.3 | 0.5 | 0.7 | 1 | 1.5 | 2 | 3 | 4 | 5 | 6 | 7 |
Packaging shipping: Packed in carton, and the in wood case or on pallet.
|
Commodity: Magnesium alloy plate/Magnesium alloy Sheet
Sheet Size Range: Thickness from 0.3 mm to 300mm
Width: 600 mm max.
Length: 2500mm max.
Chemical composition list:
| Model | Mg | Al | Zn | Mn | Ce | Zr | Si | Fe | Ca | Cu | Ni | Be | Other |
| Single | Total |
| AZ31B | Bal. | 2.5-3.5 | 0.6-1.4 | 0.2-1.0 | - | - | ≦0.08 | ≦0.003 | ≦0.04 | ≦0.01 | ≦0.001 | - | ≦0.05 | ≦0.30 |
| AZ91D | Bal. | 8.5-9.5 | 0.45-0.90 | 0.17-0.40 | - | - | ≦0.08 | ≦0.004 | - | ≦0.025 | ≦0.001 | 0.0005-0.003 | ≦0.01 | - |
| AZ61 | Bal. | 5.5-7.0 | 0.5-1.5 | 0.15-0.50 | - | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| AZ80 | Bal. | 7.8-9.2 | 0.2-0.8 | 0.12-0.50 | - | - | ≦0.10 | ≦0.005 | - | ≦0.05 | ≦0.005 | - | - | ≦0.30 |
| ZK61M | Bal. | ≦0.05 | 5.0-6.0 | ≦0.10 | - | 0.3-0.9 | ≦0.05 | ≦0.05 | - | ≦0.05 | ≦0.005 | ≦0.01 | ≦0.01 | ≦0.30 |
| ME20M | Bal. | ≦0.20 | ≦0.30 | 1.3-2.2 | 0.15-0.35 | - | ≦0.10 | ≦0.05 | - | ≦0.05 | ≦0.007 | ≦0.01 | ≦0.01 | ≦0.30 |

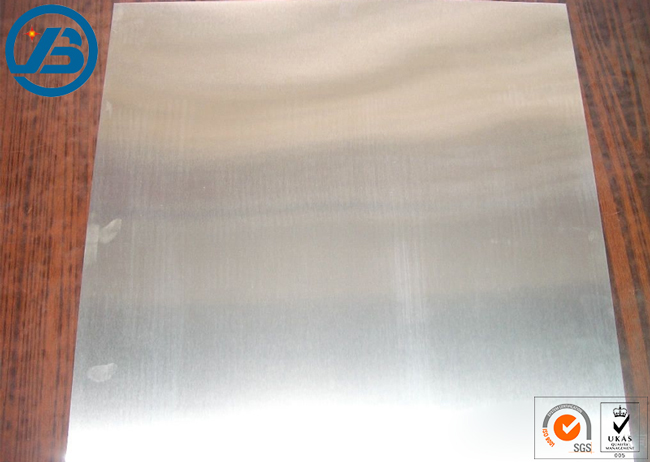

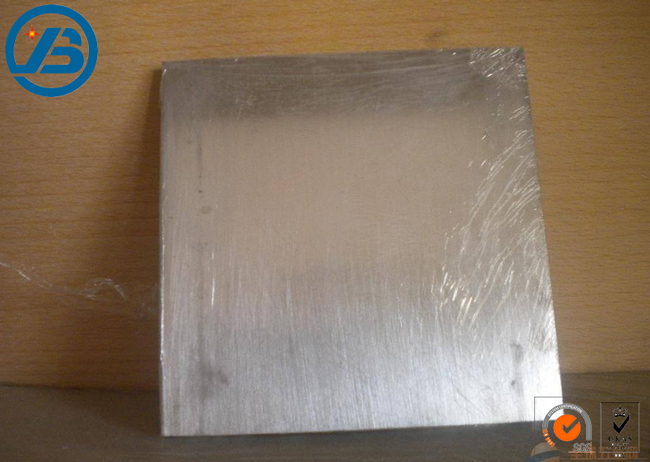

Magnesium Alloy sheet show:
Packaging shipping:
Packed in carton, and the in wood case or on pallet.
Advantage of Hilbo company:
Full range of product types, Ensure production capacity
We ave advanced die-casting, extrusion, forging, rolling, casting processing production line and precision testing equipment. Can produce a variety of types of magnesium alloy and magnesium alloy products, and developed a high-strength magnesium alloy extruded sheet. Through the purification of ordinary magnesium, magnesium can be raised up to 99.99% of high purity.
Workshop:
Cost advantage
Magnesium alloy casting production can customized as your requirement. the technical process is great, extrusion production required for a variety of bar, no need to purchase from abroad, extrusion molding products is easy molding, low energy consumption, saving production costs.
Product technology advantages
Engaged in magnesium smelting technology personnel with more than 15 years experience, from the selection of primary materials to smelting processing has a wealth of experience and mature management techniques.
We are in magnesium ingots, magnesium alloy extrusion products have technical research and development capabilities. We are come out in front in the Magnesium alloy production enterprises
Testing Equipment
Our services:
1. Small order quantity available
2. Professional engineering team and sales team
3. Payment: T/T & Western Union
4. OEM/ODM Supporttable
5. Free samples provided
6. Competitive price and high quality
Product Tags:
|
|

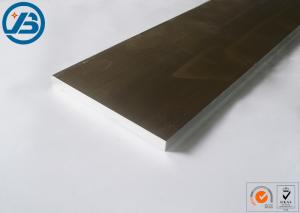

High Strength AZ31 Magnesium Alloy Mg Plate Material Flat Surface Images
|
